Birmingham has hills. The land near Red Mountain and the ridges south of the city can rise and fall many feet across one lot. That grade changes how an accessible walking route gets built. It also puts real weight on the construction plans that show the route. A path that looks fine on flat ground can fail on a slope when the drawings skip the details.

Where the Route Actually Starts: Tying Grades to a Topographic Base

An accessible route on a hill starts with real ground data. A survey crew maps the site’s true elevations first. The construction plans build on that survey, not on a guess about how steep the lot is.

The survey gives the plans a few things:

• Spot elevations that mark exact heights at doors, curbs, and corners.
• Contour lines that show how fast the land climbs, often at one or two foot steps.
• A clear picture of where the ground is too steep to hold a simple walk.

The gap between paper and dirt is where trouble starts. A route drawn without good elevation data may cross ground far steeper than planned. On a 15 percent natural grade, that mistake turns a short walk into a ramp problem no one budgeted for.

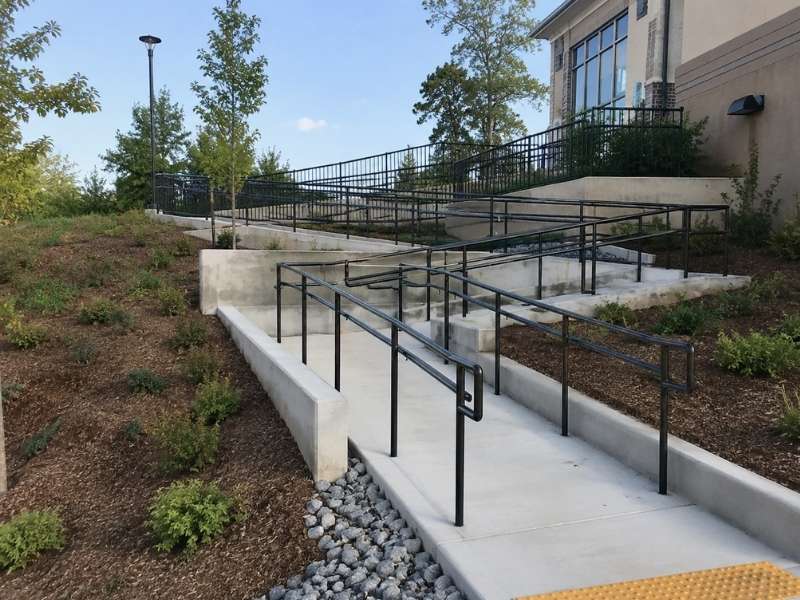

Switchbacks Over Straight Shots: Fitting Ramp Runs to a Steep Lot

On a steep lot, a straight ramp often can’t reach the door. A ramp can’t be steeper than one foot of rise for every twelve feet of length. And one ramp run can only climb 30 inches before it needs a flat landing.

The plans work around this with a few fixed rules:

• Ramp slope stays at or below 1:12.
• Each ramp run climbs no more than 30 inches before a landing.
• Every landing runs at least 60 inches long so a person can rest and turn.

Switchbacks fold the ramp back on itself. This gains height on a narrow lot without breaking the slope limit. The landings sit at each turn, and their 60 inch length pushes the whole layout wider than people expect.

The Two Percent Problem: Cross Slope and Drainage on a Grade

An accessible path has to stay nearly flat from side to side. The cross slope can’t pass 1:48, which is about 2 percent. But water still needs a way off the surface, and that pull in two directions is the hard part on a grade.

Good plans move water without tipping the path. They send it to the edges and downhill of the walk. Small grading moves near the path shape where the water goes. The point is to keep the surface dry while the cross slope stays under its limit.

Handrail, Edge, and Landing Details That Live in the Plan Set

Some rules only show up as details on the plan sheets. Handrails, edge protection, and landing sizes each get drawn out. A missing detail here is often what stalls an inspection.

A few details matter most:

• Handrails are required once a ramp run rises more than 6 inches.
• Handrail extensions reach about 12 inches past the top and bottom of the run.
• Edge protection keeps a wheel or cane from slipping off a raised ramp.

These show up in the plan’s cross sections and detail sheets. An inspector checks the built route against those exact drawings. When a handrail height or a landing size is left off, the review stops until it’s fixed.

Sequencing Earthwork So the Route Grades Survive Construction

A route can be drawn right and still get built wrong. Cut and fill on a slope has to follow an order. When the dirt work skips that order, the finished grades drift off the numbers on the sheet.

The plans guide the build in a few ways:

• They set the cut and fill order so the route corridor lands at the right height.
• They call for firm subgrade compaction under the path.
• They protect the path corridor from heavy traffic during the rest of the build.

Phasing notes tie it together. They tell the crew when to grade the route and when to leave it alone. That is how the built path ends up matching the one on the plans.

Frequently Asked Questions

Can a walkway be too steep to count as an accessible route on its own?

Yes, a walkway can be too steep. Once the running slope passes 5 percent, it no longer counts as a simple walk. At that point it has to be built as a ramp, with landings spaced along the climb. Most of these ramps also need handrails once the rise gets high enough.

What happens when Birmingham’s natural grade is steeper than a ramp allows?

Birmingham’s terrain often climbs faster than a ramp is allowed to. When that happens, the construction plans make up the difference. Switchbacks, retaining walls, or regrading the path corridor can bring the slope back into range. The goal is to keep each ramp run within its limit while still reaching the door.

Do the plans have to show every landing, or just the ramp runs?

The plans have to show every landing, not just the ramp runs. Each landing gets its length marked and its slope called out on the sheet. Landings are where an inspector checks that the route resets to level. Leaving one of the drawings is an easy way to fail review.
